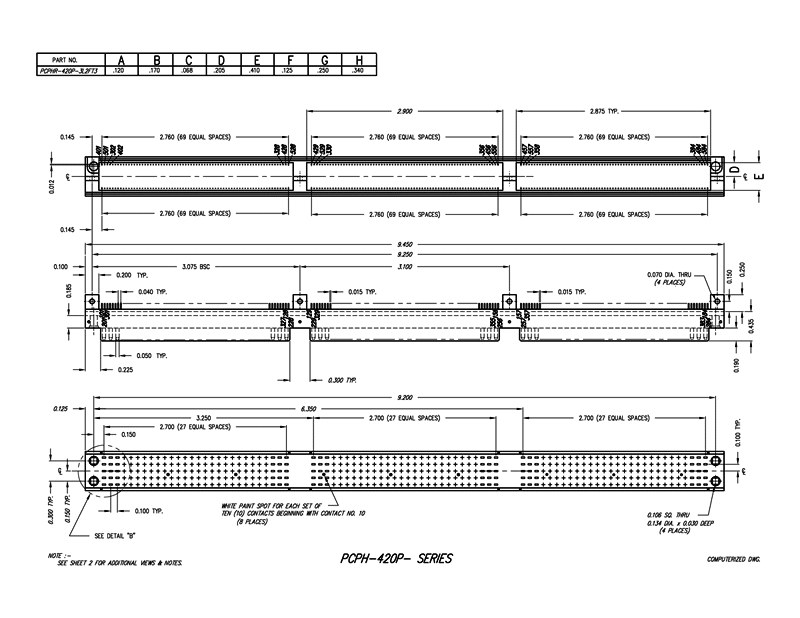

PCPH 420P SERIES



SPECIFICATIONS

MATERIALS

INSULATION MATERIAL:- DIALLYL PHTHALATE PER MIL-M-14,
TYPE SDG-F, COLOR BLACK.
CONTACTS:- 70-30 BRASS PER QQ-B-613.
HOOD:- ALUMINUM PER QQ-A-200.

FINISH

CONTACTS: - GOLD PLATED PER MIL-G-45204, OVER NICKEL PLATE PER QQ-N-290, OVER COPPER PLATE PER MIL-C-14550.
HOOD:- ANODIZED PER MIL-A-8625, COLOR BLACK.
OPTIONAL CONTACT PLATING:- CONTACT TAILS CAN BE SUPPLIED WITH A HOT TIN DIPPED COATING PER QQ-S-571.

ELECTRICAL

CURRENT RATING:- 3 AMPS PER CONTACT.

DIELECTRIC WITHSTANDING VOLTAGE :-

(A) SEA LEVEL :- CONTACT TO CONTACT 1500 V.D.C.

(B) 70,000 FEET:- CONTACT TO CONTACT 375 V.D.C.

INSULATION RESISTANCE:-

(A) BEFORE HUMIDITY:- 5,000 MEGOHMS

(B) DURING & AFTER HUMIDITY: - 1,000 MEGOHMS

POLORIZATION:- WITH THE ULITIZATION OF ANY OF THE FOLLOWING PILOT PINS:- 1007059, 1007060 & 1007061.

QUALITY ASSURANCE

ENVIRONMENTAL & QUALITY ASSURANCE PROVISIONS AS PER
REQUIREMENTS OF MIL-C-55302 & MIL-STD 202.

*Many different polarizing positions available
