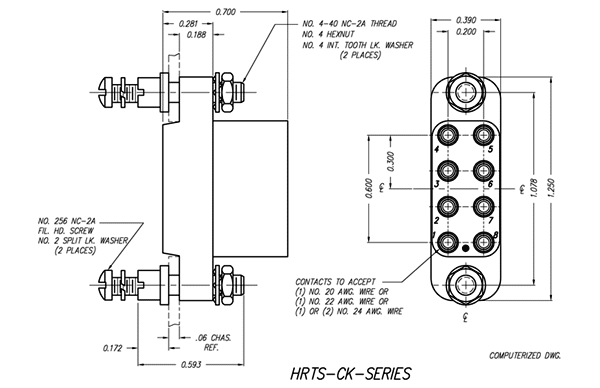

HRTS-CK SERIES

Crimp Removable Contact Relay Sockets



SPECIFICATIONS

MATERIALS

INSULATION MATERIAL:- DIALLYL PHTHALATE PER MIL-M-14, TYPE GDI-30F,
COLOR GREEN
SOCKET CONTACTS:- PHOSPHOR BRONZE PER QQ-B-750, COMP A
SLEEVE :- BRASS PER QQ-B-626.
MOUNTING HARDWARE :- CRES PER QQ-S-763/766, 300 SERIES OR BRASS PER
QQ-B-626.
CONTACT RETAINING CLIP :- CRES PER QQ-S-763, 300 SERIES.

FINISH

SOCKET CONTACTS :- (V2 SUFFIX) GOLD PLATE (0.00005) PER MIL-G-45204,

(SLEEVES) TYPE II, CLASS 1, OVER COPPER PLATE.

OTHER CONTACT FINISHES ALSO AVAILABLE UPON REQUEST.


MOUNTING HARDWARE :- PASSIVATED PER QQ-P-35 OR CADMIUM PLATED PER QQ-P-416, TYPE II, CLASS 2.

CONTACT RETAINING CLIP :- PASSIVATED PER QQ-P-35 .

CREEPAGE BETWEEN CONTACTS

0.12 Min

AIRSPACE WITHIN CONTACTS

0.09 Min

CONTACT SIZE

Accepts 0.040 diam. Pins

ELECTRICAL

CURRENT RATING :- 3 AMPS
DIELECTRIC WITHSTANDING VOLTAGE :-
(A) SEA LEVEL :- CONTACT TO CONTACT 2250 VRMS
(B) 70,000 FEET :- CONTACT TO CONTACT 500 VRMS
INSULATION RESISTANCE :-
(A) BEFORE HUMIDITY :- 5,000 MEGOHMS
(B) DURING & AFTER HUMIDITY:- 1,000 MEGOHMS

CLOSED-ENTRY CONTACTS MEET PROBE DAMAGE TEST OF MIL-C-5015

REMOVAL TOOL :- NO. T9066-2
CRIMPING TOOL :- NO. MS-3191-A
POSITIONER :- NO. KP 7010
INSERTION TOOL :- NOT REQUIRED

QUALITY ASSURANCE

ENVIRONMENTAL & QUALITY ASSURANCE PROVISIONS AS PER REQUIREMENTS OF
MIL-S-12883 & MIL-STD 202
