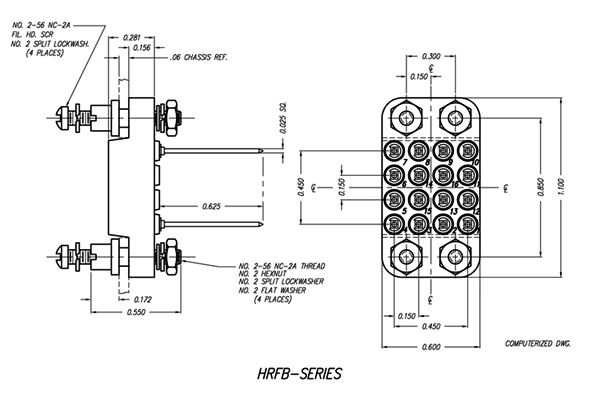

HRFB SERIES



SPECIFICATIONS

MATERIALS

INSULATION MATERIAL:- DIALLYL PHTHALATE PER MIL-M-14, TYPE GDI-30F, COLOR GREEN.
SOCKET CONTACTS:- PHOSPHOR BRONZE PER QQ-B-750, COMP.A,OR BERYLLIUM COPPER (BERYLCO 25).
MOUNTING HARDWARE :- COLD ROLL STEEL.

FINISH

SOCKET CONTACTS :- (V2 SUFFIX) GOLD PLATE (0.00005) PER MIL-G-45204,
TYPE II, CLASS 1, OVER COPPER PLATE.
OTHER CONTACT FINISHES ALSO AVAILABLE UPON REQUEST.
MOUNTING HARDWARE :- CADMIUM PLATED PER QQ-P-416, TYPE II, CLASS 2.
OPTIONAL CONTACT PLATING:- CONTACT TAILS CAN BE SUPPLIED WITH A HOT TIN DIPPED COATING PER QQ-S-571.

CREEPAGE BETWEEN CONTACTS

0.10 Min

AIRSPACE WITHIN CONTACTS

0.06 Min

CONTACT SIZE

Accepts 0.020 diam. Pins

ELECTRICAL

CURRENT RATING:- 3 AMPS
DIELECTRIC WITHSTANDING VOLTAGE :-
(A) SEA LEVEL :- CONTACT TO CONTACT 1500 VRMS
(B) 70,000 FEET:- CONTACT TO CONTACT 375 VRMS
INSULATION RESISTANCE:-
(A) BEFORE HUMIDITY:- 5,000 MEGOHMS
(B) DURING & AFTER HUMIDITY: - 1,000 MEGOHMS

QUALITY ASSURANCE

ENVIRONMENTAL & QUALITY ASSURANCE PROVISIONS AS PER REQUIREMENTS OF
MIL-S- 12883 & MIL-STD 202.

*Alternate contact styles available
