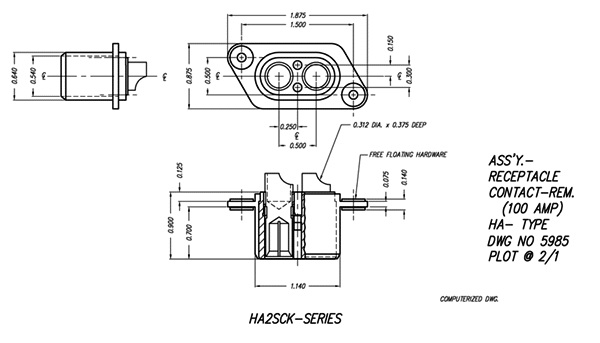

HA 2SCK SERIES

High Amperage 75 & 100 Amp Connectors



SPECIFICATIONS

MATERIALS

INSULATION MATERIAL:- DIALLYL PHTHALATE PER MIL-M-14, TYPE SDG-F, COLOR BLACK..
FLOATING EYELETS :- CRES PER QQ-S-763, 300 SERIES.
SHELL :- ALUMINUM PER QQ-A-200.

FINISH

CONTACTS :- (V2 SUFFIX) GOLD PLATED (0.00005) PER MIL-G-45204, TYPE II, CLASS 1, OVER COPPER PLATE.

OTHER CONTACT FINISHES ALSO AVAILABLE UPON REQUEST.

FLOATING EYELETS :- PASSIVATED PER QQ-P-35.

SHELL :- ANODIZED PER MIL-A-8625, COLOR GOLD.

LARGE CONTACTS :-


CURRENT RATING :- 75 AMPS & / OR 100 AMPS.

CONTACT SIZE 0.250 DIA. NO. 4 & / OR 0.290 DIA. NO. 2

MATERIAL :- BERYLLIUM COPPER PER QQ-C-530.

REMOVABLE, POKE HOME, SOLDER CUP

REMOVING TOOL :- NO. T9090-1

INSERTION TOOL :- NOT REQUIRED

SMALL CONTACTS :-


CURRENT RATING :- 7.5 AMPS

CONTACT SIZE :- 0.040 DIA.

MATERIAL :- PHOSPHOR BRONZE PER QQ-B-750, COMP A, OR BERYLLIUM COPPER (BERYLCO 25)

REMOVING TOOL :- NO. T9066-1

CRIMPING TOOL :- NO. MS-3191-A

POSITIONER :- NO. 612192

INSERTION TOOL :- NOT REQUIRED

DIELECTRIC WITHSTANDING VOLTAGE :-



(A) SEA LEVEL :- CONTACT TO CONTACT :- 30 VDC

(B) 70,000 FEET :- CONTACT TO CONTACT :- 30 VDC



INSULATION RESISTANCE :-


(A) BEFORE HUMIDITY :- 5,000 MEGOHMS

(B) DURING & AFTER HUMIDITY :- 500 MEGOHMS

CLOSED-ENTRY CONTACTS MEET PROBE DAMAGE TEST OF MIL-C-5015.

List Body

QUALITY ASSURANCE

ENVIRONMENTAL & QUALITY ASSURANCE PROVISIONS AS PER REQUIREMENTS OF MIL-C-55302 & MIL-STD 202.

*Alternate contact styles available
