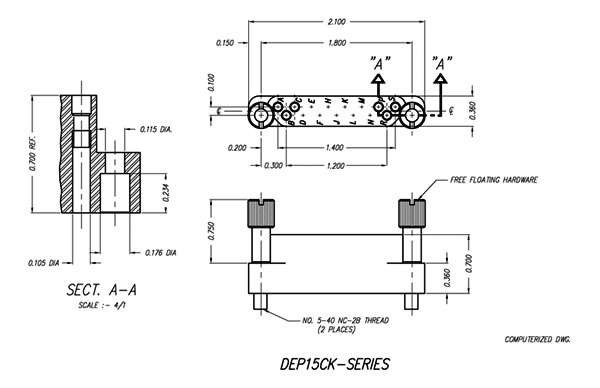

DEP-CK SERIES

Crimp Removable Contact Connectors



SPECIFICATIONS

MATERIALS

INSULATION MATERIAL:- DIALLYL PHTHALATE PER MIL-M-14, TYPE GDI-30F, COLOR GREEN
SOCKET CONTACTS:- PHOSPHOR BRONZE PER QQ-B-750, COMP A OR BERYLLIUM COPPER PER QQ-C-530
SLEEVE :- BRASS PER QQ-B-626.
MOUNTING HARDWARE :- CRES PER QQ-S-763/766, 300 SERIES
CONTACT RETAINING CLIP :-

FINISH

SOCKET CONTACTS :- (T3 SUFFIX) GOLD PLATE (0.00005) PER MIL-G-45204,

(SLEEVES) TYPE II, CLASS 1, OVER NICKEL PLATE PER QQ-N-290,

TYPE VII, CLASS 1.

OTHER CONTACT FINISHES ALSO AVAILABLE UPON REQUEST.


MOUNTING HARDWARE :- PASSIVATED PER QQ-P-35.

CONTACT RETAINING CLIP :-

CREEPAGE BETWEEN CONTACTS

0.08 Min

AIRSPACE WITHIN CONTACTS

0.05 Min

CONTACT SIZE

Accepts 0.040 diam. Pins

ELECTRICAL

CURRENT RATING :- 7.5 AMPS

DIELECTRIC WITHSTANDING VOLTAGE :-


(A) SEA LEVEL :- CONTACT TO CONTACT 1500 VRMS

(B) 70,000 FEET :- CONTACT TO CONTACT 375 VRMS

INSULATION RESISTANCE :-


(A) BEFORE HUMIDITY :- 5,000 MEGOHMS

(B) DURING & AFTER HUMIDITY:- 1,000 MEGOHMS

CLOSED-ENTRY CONTACTS MEET PROBE DAMAGE TEST OF MIL-C-5015.

REMOVAL TOOL :- NO. T9066-1
CRIMPING TOOL :- NO. MS-3191-A
POSITIONER :- NO. 612192
INSERTION TOOL NOT REQUIRED

QUALITY ASSURANCE

ENVIRONMENTAL & QUALITY ASSURANCE PROVISIONS AS PER REQUIREMENTS OF
MIL-C-55302 & MIL-STD 202.
